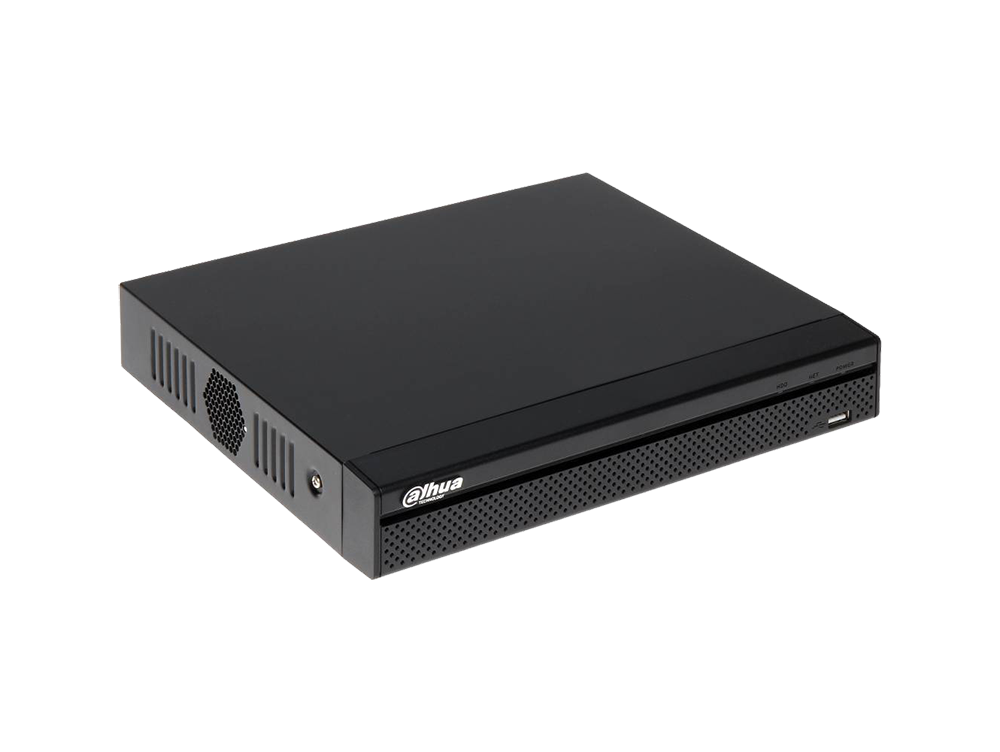

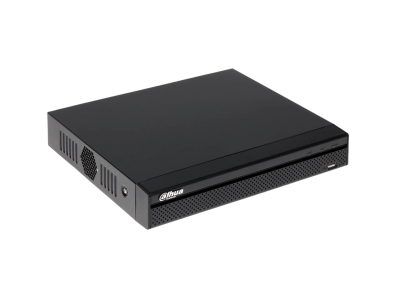

NVR4104HS-P-4KS2-L

NVR 4 canali IP fino a 8 MP (recording), 2 canali a 8 MP/8 canali a 1080p (decoding), max. banda 80 Mbps, H.265+, 2 uscite video (1 VGA + 1 HDMI), 1 ingresso e 1 uscita audio bidirezionali, predisposto per montaggio di 1 disco SATA (fino a 10 TB), 2 porte USB (2.0 e 3.0), 1 porta LAN 100 Mbps + 4 porte PoE ( 36 W), Compact 1U, alimentazione 48/53 Vdc 10 W senza Hard Disk

Scopri il Prezzo!Registrati o effettua il Login per scoprire la scontistica a te dedicata, riduzioni sul prezzo di listino fino al 70%!
COD: nvr4104hs-p-4ks2-l Categoria:

NVR4104HS-P-4KS2-L

NVR 4 canali IP fino a 8 MP (recording), 2 canali a 8 MP/8 canali a 1080p (decoding), max. banda 80 Mbps, H.265+, 2 uscite video (1 VGA + 1 HDMI), 1 ingresso e 1 uscita audio bidirezionali, predisposto per montaggio di 1 disco SATA (fino a 10 TB), 2 porte USB (2.0 e 3.0), 1 porta LAN 100 Mbps + 4 porte PoE (<36 W), Compact 1U, alimentazione 48/53 Vdc <10 W senza Hard Disk

Informazioni aggiuntive

Peso1.0000 kg

System

Main ProcessorIndustrial-grade embedded processor
OSEmbedded Linux
Operation InterfaceWeb/operating in local GUI
Perimeter Protection by Camera
Performance4 channels
AI SearchSearch for pictures by channel, time and event type

Face Detection by Camera

Performance4 channels
Face Attributes6 attributes: Gender, age, glasses, expression, mouth mask, and beard
AI SearchSearch for pictures by channel, time and face attributes

SMD Plus by Camera

Performance4 channels
AI SearchSearch by target classification (human, vehicle)

Video

Access Channel4
Network BandwidthAccess: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps
Resolution8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1
Decoding Capability8 × 1080p@30 fps
Video Output1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI
Multi-screen Display1 , 4 views
Third-party Camera AccessONVIF; RTSP

Compression

VideoSmart H.265/H.265/Smart H.264/H.264/MJPEG
AudioPCM/G711A/G711U/G726/AAC

Network

Network ProtocolHTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register
Mobile Phone AccessAndroid; iOS
InteroperabilityONVIF(profile T/S/G); CGI; SDK
BrowserChrome; IE9 or later; firefox

Record Playback

Multi-channel PlaybackUp to 4 channels for playback
Record ModeManual record; alarm recording; SMD recording; smart recording
StorageLocal HDD; network
BackupUSB storage device
Playback Function1. Play/pause/stop/slow/quick/backward/by frame
2. Full screen, backup (video clip/file), partial zoom in, and audio on/off

Storage

Disk GroupYes

External Port

Audio Input1 × RCA input
Audio Output1 × RCA output
HDD1 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature
USB2 (1 × front USB2.0; 1 × back USB2.0)
HDMI1 (supports up to 4K resolution output)
VGA1
Network1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port
POE4

General Parameter

Power Supply48 V/53 VDC, 1.25 A/1.13 A
Power Consumption< 10 W (HDD not included, idling)
Total output power of PoE is 36W, the maximum output power of a single port is 25.5W
Net Weight0.86 kg (1.90 lb)
Gross Weight1.86 kg (4.10 lb)
Product Dimensions260 mm × 232.3 mm × 50.3 mm (10.24" × 9.14" × 1.98") (W × L × H)
Package Dimensions117 mm × 373 mm × 307 mm (4.61" × 14.69" × 12.09") (W × L × H)
Operating Conditions–10 °C to +55 °C (+10 °F to +131 °F)
Storage Conditions0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity10℅~93℅
Storage Humidity30%~85%
Operating Altitude3000 m (9842.52 ft)
InstallationDesktop mounted
CertificationsCE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4
FCC: Part 15 Subpart B
