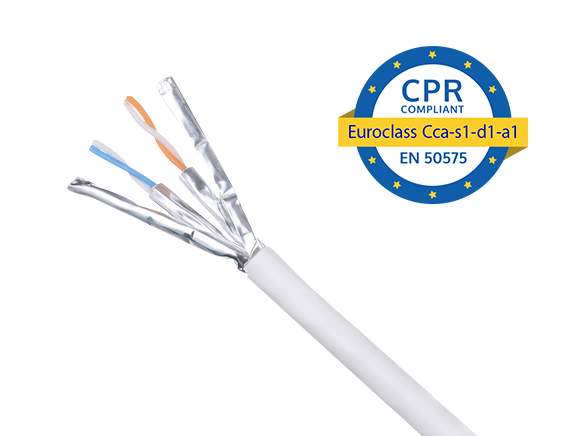

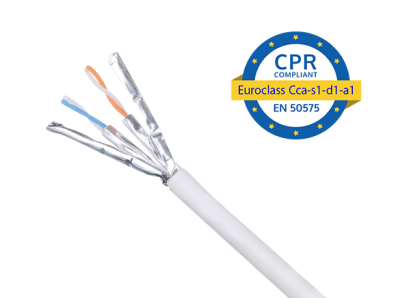

The TX6A^tm Cat 6A U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The conductors are twisted in pairs with an alien crosstalk barrier. All four pairs are surrounded by a HDPE flame-retardant jacket. The white, LSZH (IEC
The TX6A^tm Cat 6A U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The conductors are twisted in pairs with an alien crosstalk barrier. All four pairs are surrounded by a HDPE flame-retardant jacket. The white, LSZH (IEC
| Peso | 19.2500 kg |
|---|---|
| Categoria Cablaggio | |
| Schermatura | |
| Euroclasse - CPR |
| Cable Category | 6A |
| Cable Construction | U/UTP |
| Overall Length (m) | 305 |
| Conductor Material | Copper |
| Jacket Material | High Density Polyethylene |
| Conductor Gauge (AWG) | 23 |
| Conductor Type | Solid |
| Nominal Diameter (mm) | 7.2 |
| Insulation Diameter (In.) | 0.05 |
| Insulation Diameter (mm) | 1.3 |
| Bend Radius (mm) | 57.6 |
| Number of Pairs | 4 |
| Sub Brand | PanNet |
| Maximum Operating Temperature (°C) | 60 |
| Minimum Operating Temperature (°C) | -20 |
| Maximum Installation Temperature (°C) | 50 |
| Minimum Installation Temperature (°C) | 0 |
| Maximum Installation Tension (N) | 110 |
| Maximum Installation Tension (lb) | 25 |
| Environment | Indoor |
| Package Type | Reel |
| Color | White |
| Environmental Voltage Rating (V) | 80 |
| Standards Met | ROHS |
| Resistance Properties | Flame-Resistant |
| Flammability Rating | LSZH-1 |
| Euroclass Rating | Cca-s1a-d1-a1 |
| CE Compliant | Euroclass Cca-s1a-d1-a1 |
